UniCrys™ Crystallization Products

Creative Biostructure proudly provides you our UniCrys™ crystallization products for analysis of protein structures and functions, including various aspects of structural bioinformatics and biophysics. Our high-quality reagent kits are designed for highly effective and rapid screening of the crystallization properties of your samples.

Crystallization Plates


Sparse-matrix sampling using commercially available crystallization screening kits has become the most popular way in determining preliminary crystallization conditions for macromolecules.

We can provide UniCrys™ crystallization products including but not limited to:

Crystallization Plates

Pre-Crystallization Test (PCT)

Creative Biostructure can help you select and pre-determine the appropriate conditions for crystallization screening.

Protein Crystallization Kits

Protein Crystallization Kits

Crystal reagent kits are designed to provide highly effective and rapid screening tools for crystallization of macromolecules.

Protein Crystallization Tools

Protein Crystallization Tools

For crystal seeding, handling & manipulation.

Optimization Screening

Optimization Screening

Solubility & Stability Screening such as additive screening and conditions optimization in the presence of a crystallization reagent.

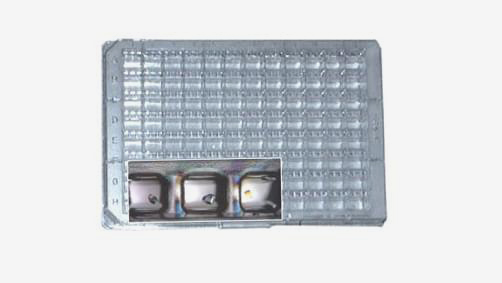

Protein Crystallization Plates

Protein Crystallization Plates

For protein crystals growing: Screening & Optimization

Protein crystallization is an outstanding model system for crystallization from solution, uncovering the high-resolution structures and functions of macromolecules by X-ray diffraction. Creative Biostructure’s technical and engineering group can offer comprehensive high-quality UniCrys™ products to meet your requirements.

Linbro Plate (CB-101)
RESERVOIR WELL VOLUME :
3.500 μl
PROTEIN WELL VOLUME :
-
MATERIAL :
Polystyrene
SURFACE :
Polystyrene
CrystalQuick - 609120 (CB-107)
RESERVOIR WELL VOLUME :
320 μl
PROTEIN WELL/ RESERVOIR :
3
PROTEIN WELL VOLUME :
1,9 μl
MATERIAL :
Polystyrene
SURFACE :
Polystyrene
CrystalQuick - 609171 (CB-108)
RESERVOIR WELL VOLUME :
140 μl
PROTEIN WELL/ RESERVOIR :
1
PROTEIN WELL VOLUME :
3,9 μl
MATERIAL :
Polystyrene
SURFACE :
Polystyrene
Corning Plate 3556 (CB-109)
RESERVOIR WELL VOLUME :
100 μl
PROTEIN WELL/ RESERVOIR :
1
PROTEIN WELL VOLUME :
4 μl
MATERIAL :
Cycloolefin (LBR)
SURFACE :
Cycloolefin (LBR)
Corning Plate 3551 (CB-110)
RESERVOIR WELL VOLUME :
100 μl
PROTEIN WELL/ RESERVOIR :
1
PROTEIN WELL VOLUME :
4 μl
MATERIAL :
Cycloolefin (LBR)
SURFACE :
Hydrophobic
Corning Plate 3552 (CB-111)
RESERVOIR WELL VOLUME :
100 μl
PROTEIN WELL/ RESERVOIR :
3
PROTEIN WELL VOLUME :
2 μl
MATERIAL :
Pzero
SURFACE :
Pzero
Corning Plate 3553 (CB-112)
RESERVOIR WELL VOLUME :
100 μl
PROTEIN WELL/ RESERVOIR :
3
PROTEIN WELL VOLUME :
2 μl
MATERIAL :
Pzero
SURFACE :
Pzero
Corning Plate 3557 (CB-115)
RESERVOIR WELL VOLUME :
100 μl
PROTEIN WELL/ RESERVOIR :
5
PROTEIN WELL VOLUME :
1 μl
MATERIAL :
Pzero
SURFACE :
Pzero
Corning Plate 3550 (CB-116)
RESERVOIR WELL VOLUME :
100 μl
PROTEIN WELL/ RESERVOIR :
3
PROTEIN WELL VOLUME :
1 μl
MATERIAL :
Pzero
SURFACE :
Pzero
CrystalQuick - 609101 (CB-118)
RESERVOIR WELL VOLUME :
320 μl
PROTEIN WELL/ RESERVOIR :
3
PROTEIN WELL VOLUME :
4,1 μl
MATERIAL :
Polystyrene
SURFACE :
Polystyrene
ComboPlate (CB-119)
RESERVOIR WELL VOLUME :
3.300 μl
PROTEIN WELL VOLUME :
-
MATERIAL :
Polystyrene
SURFACE :
Polystyrene
CrystalQuick LBR - 609801 (CB-120)
RESERVOIR WELL VOLUME :
320 μl
PROTEIN WELL/ RESERVOIR :
3
PROTEIN WELL VOLUME :
4,1 μl
MATERIAL :
Cycloolefin (LBR)
SURFACE :
Cycloolefin (LBR)
CrystalQuick LBR - 609820 (CB-121)
RESERVOIR WELL VOLUME :
320 μl
PROTEIN WELL/ RESERVOIR :
3
PROTEIN WELL VOLUME :
1,9 μl
MATERIAL :
Cycloolefin (LBR)
SURFACE :
Cycloolefin (LBR)
CrystalQuick LBR - 609871 (CB-122)
RESERVOIR WELL VOLUME :
140 μl
PROTEIN WELL/ RESERVOIR :
1
PROTEIN WELL VOLUME :
3,9 μl
MATERIAL :
Cycloolefin (LBR)
SURFACE :
Cycloolefin (LBR)
CrystalQuick Plus - 609130 (CB-123)
RESERVOIR WELL VOLUME :
320 μl
PROTEIN WELL/ RESERVOIR :
3
PROTEIN WELL VOLUME :
4,1 μl
MATERIAL :
Polystyrene
SURFACE :
Hydrophobic
CrystalQuick Plus LBR - 609830 (CB-124)
RESERVOIR WELL VOLUME :
320 μl
PROTEIN WELL/ RESERVOIR :
3
PROTEIN WELL VOLUME :
4,1 μl
MATERIAL :
Cycloolefin (LBR)
SURFACE :
Hydrophobic
CrystalQuick Plus - 609180 (CB-125)
RESERVOIR WELL VOLUME :
140 μl
PROTEIN WELL/ RESERVOIR :
1
PROTEIN WELL VOLUME :
3,9 μl
MATERIAL :
Polystyrene
SURFACE :
Hydrophobic
Corning Plate 3773 (CB-126)
RESERVOIR WELL VOLUME :
210 μl
PROTEIN WELL/ RESERVOIR :
1
PROTEIN WELL VOLUME :
10 μl
MATERIAL :
Advanced Polymer
SURFACE :
Advanced Polymer
Corning Plate 3785 (CB-127)
RESERVOIR WELL VOLUME :
210 μl
PROTEIN WELL/ RESERVOIR :
1
PROTEIN WELL VOLUME :
7 μl
MATERIAL :
Advanced Polymer
SURFACE :
Advanced Polymer
Crystalgen SuperClear Plate (CB-130)
RESERVOIR WELL VOLUME :
3.500 μl
PROTEIN WELL VOLUME :
-
MATERIAL :
Polystyrene
SURFACE :
Polystyrene
ComboPlate, pregreased (CB-131)
RESERVOIR WELL VOLUME :
3.300 μl
PROTEIN WELL VOLUME :
-
MATERIAL :
Polystyrene
SURFACE :
Polystyrene
CrystalgenSuperClear Plate, pregreased (CB-132)
RESERVOIR WELL VOLUME :
3.500 μl
PROTEIN WELL VOLUME :
-
MATERIAL :
Polystyrene
SURFACE :
Polystyrene
AxyGem Crystallography Plate (CB-135)
RESERVOIR WELL VOLUME :
250 μl
PROTEIN WELL/ RESERVOIR :
1
PROTEIN WELL VOLUME :
4,3 μl
MATERIAL :
Polystyrene
SURFACE :
Polystyrene
MRC 2 Well Crystallization Plate (CB-139)
RESERVOIR WELL VOLUME :
85 μl
PROTEIN WELL/ RESERVOIR :
2
PROTEIN WELL VOLUME :
5 μl
MATERIAL :
UVP
SURFACE :
UVP
3 Well Crystallization Plate (CB-149)
RESERVOIR WELL VOLUME :
30 μl
PROTEIN WELL/ RESERVOIR :
3
PROTEIN WELL VOLUME :
5 μl
MATERIAL :
UVP
SURFACE :
UVP
3 Well Crystallization Plate (CB-150)
RESERVOIR WELL VOLUME :
30 μl
PROTEIN WELL/ RESERVOIR :
3
PROTEIN WELL VOLUME :
5 μl
MATERIAL :
Polystyrene
SURFACE :
Polystyrene
HDP Hanging Drop Crystallization Plate (CB-151)
RESERVOIR WELL VOLUME :
200 μl
PROTEIN WELL VOLUME :
5 μl
MATERIAL :
UVP
SURFACE :
UVP
MRC 2 Well Crystallization Plate (CB-153)
RESERVOIR WELL VOLUME :
85 μl
PROTEIN WELL/ RESERVOIR :
2
PROTEIN WELL VOLUME :
5 μl
MATERIAL :
Polystyrene
SURFACE :
Polystyrene
MRC Maxi Plate (CB-154)
RESERVOIR WELL VOLUME :
200 μl
PROTEIN WELL/ RESERVOIR :
1
PROTEIN WELL VOLUME :
10 μl
MATERIAL :
UVP
SURFACE :
UVP
MRC Maxi Plate (CB-155)
RESERVOIR WELL VOLUME :
200 μl
PROTEIN WELL/ RESERVOIR :
1
PROTEIN WELL VOLUME :
10 μl
MATERIAL :
Polystyrene
SURFACE :
Polystyrene
CrystalQuick X - 609890 (CB-157)
RESERVOIR WELL VOLUME :
80 μl
PROTEIN WELL/ RESERVOIR :
2
PROTEIN WELL VOLUME :
2,4 μl
MATERIAL :
Cycloolefin (LBR)
SURFACE :
Cycloolefin (LBR)
LCP Glass Sandwich Set (CB-159)
RESERVOIR WELL VOLUME :
1 μl
PROTEIN WELL VOLUME :
50 nl LCP
MATERIAL :
Glass
SURFACE :
Super-hydrophobic
In-situ-1 Crystallization Plate (CB-160)
RESERVOIR WELL VOLUME :
40 μl
PROTEIN WELL/ RESERVOIR :
1
PROTEIN WELL VOLUME :
droplets 50 nl - 2 μl
MATERIAL :
COC
SURFACE :
COC
CombiClover Plate (CB-CBT)
RESERVOIR WELL VOLUME :
1.500 μl
PROTEIN WELL/ RESERVOIR :
4
PROTEIN WELL VOLUME :
50 μl
MATERIAL :
Polypropylene
SURFACE :
Polypropylene
CombiClover Jr. Plate (CB-CJR)
RESERVOIR WELL VOLUME :
500 μl
PROTEIN WELL/ RESERVOIR :
4
PROTEIN WELL VOLUME :
10 μl
MATERIAL :
Polypropylene
SURFACE :
Polypropylene
CompactClover Plate (CB-XPT)
RESERVOIR WELL VOLUME :
250 μl
PROTEIN WELL/ RESERVOIR :
1
PROTEIN WELL VOLUME :
50 μl
MATERIAL :
Polypropylene
SURFACE :
Polypropylene
