In materials science, solid-state chemistry, and pharmaceutical research, understanding the structural and dynamic properties of crystalline materials is crucial. Techniques like X-ray diffraction (XRD) and electron microscopy provide long-range order information and atomic positioning, but they often fall short in revealing local environments, dynamic processes, or amorphous components. This is where solid-state Nuclear Magnetic Resonance (NMR) steps in as a unique and powerful technique.

Solid-state NMR, unlike its solution counterpart, is adept at probing atomic-scale environments without the need for long-range order or sample solubility. It offers atom-specific, non-destructive, and orientation-sensitive data, making it indispensable for studying both perfect crystals and real-world, complex materials riddled with defects, disorder, and interfaces.

Creative Biostructure offers advanced solid-state NMR services for investigating chemical structures, spatial arrangements, and conformations across a wide range of substances—including organic and inorganic compounds, polymers, natural products, and small proteins.

An overview of studying crystalline microporous materials using solid-state NMR spectroscopy. Figure 1. Solid-state NMR spectroscopy for studying crystalline microporous materials. (Ashbrook et al., 2014)

Basic Principles of NMR Spectroscopy

At the heart of NMR spectroscopy lies the principle of nuclear spin. Certain isotopes—such as ¹H, ¹³C, ¹⁵N, ¹⁹F, ²⁹Si, and ³¹P—possess a non-zero nuclear spin, making them responsive to an external magnetic field. When subjected to such a field, these nuclei occupy discrete energy levels. Radiofrequency (RF) pulses excite these nuclei, and the subsequent relaxation emits signals characteristic of the local atomic environment.

Key concepts include:

Chemical shift (δ): Measures the shielding of nuclei by surrounding electrons, reflecting local electronic environments.
J-coupling: Scalar interaction between spins through chemical bonds (typically less dominant in solids).
Dipolar coupling: Magnetic interaction between two nuclei; highly prominent in solids.
Quadrupolar interaction: Relevant for nuclei with spin > 1/2 (e.g., ²⁷Al, ¹⁷O), due to electric field gradients around the nucleus.

Principles Specific to Solid-State NMR

To overcome the static, anisotropic interactions present in solids, solid-state NMR employs a range of physical and computational techniques:

Magic-Angle Spinning (MAS): The sample is spun rapidly (~10–100 kHz) at 54.74° relative to the magnetic field. This averages out anisotropic components of interactions, narrowing lines dramatically.
Cross-Polarization (CP): Enhances the signal of low-gamma nuclei (e.g., ¹³C, ¹⁵N) by transferring polarization from abundant ¹H nuclei.
High-Power Decoupling: Continuous RF irradiation suppresses heteronuclear dipolar couplings during acquisition, improving resolution.
Multiple Pulse Sequences: Used to selectively probe particular interactions (e.g., REDOR, CP-MAS, HETCOR).

These methods allow solid-state NMR to resolve structural details otherwise inaccessible in static solid samples.

Techniques to Improve Resolution in Solid-State NMR

Beyond MAS and CP, several innovations help maximize spectral resolution and sensitivity:

High-Field Magnets: Higher magnetic fields increase resolution and reduce quadrupolar broadening, improving spectral dispersion.
Ultra-Fast MAS: Spinning rates exceeding 60 kHz improve resolution, especially in proton-detected experiments.
Isotope Enrichment: Enriching samples with ¹³C, ¹⁵N, or ¹⁷O increases sensitivity and allows for complex correlation experiments.
Dynamic Nuclear Polarization (DNP): Transfers polarization from electrons to nuclei, resulting in signal enhancements up to 100-fold.
2D Solid-State NMR: Techniques such as ¹H–¹³C HETCOR, ¹³C–¹³C DARR, and ²⁷Al MQMAS provide spatial and bonding correlations.

Each method is tailored to the nucleus of interest, sample characteristics, and specific analytical goals.

Select Service

Related Reading

Application of Solid-State NMR to Crystalline Materials

Structure Elucidation

Solid-state NMR is a powerful tool for elucidating the structures of crystalline materials. Unlike X-ray diffraction which reports on the electron-density distribution, NMR spectroscopy probes the nuclei themselves and provides detailed information about the local atomic environment. For example, it can reveal the positions and interactions of hydrogen atoms, which are often difficult to determine accurately using X-ray diffraction alone. Moreover, advanced techniques such as Dynamic Nuclear Polarization (DNP)-enhanced solid-state NMR can reduce experimental time and allow the study of more complex structures.

Polymorphism Detection

Polymorphism, the existence of a compound in different crystal forms, is an important phenomenon in many fields. Solid-state NMR can effectively detect and differentiate polymorphs. Different polymorphs have distinct NMR spectra due to their different molecular conformations and packing arrangements. For example, ¹³C solid-state NMR spectroscopy has been used to identify and characterize various polymorphs of pharmaceutical compounds, providing valuable information for drug development.

Hydrogen Bonding and Molecular Dynamics

Hydrogen bonding plays a crucial role in the structure and properties of many crystalline materials. Solid-state NMR is particularly useful in studying hydrogen bonds because it can directly detect hydrogen atoms and their interactions. Additionally, solid-state NMR can probe molecular dynamics in crystalline materials over a wide range of timescales, from seconds to picoseconds. This enables researchers to investigate processes such as molecular rotation, diffusion, and reorientation, which are important for understanding the material's properties and behavior.

Defect and Disorder Analysis

Defects and disorder in crystalline materials can significantly affect their properties. Solid-state NMR can provide detailed information about the types, concentrations, and locations of defects and disorder in the crystal lattice. For example, it can detect vacancies, interstitial atoms, and dislocations, and study their interactions with the surrounding atoms. This information is crucial for understanding the material's mechanical, electrical, and thermal properties.

Crystallinity Assessment

Solid-state NMR can be used to assess the degree of crystallinity in materials. It can distinguish between crystalline and amorphous regions, and quantify the proportion of each phase. This is particularly useful for studying materials that have a mixture of crystalline and amorphous components, such as polymer blends and composites.

Select Service

Case Studies

Case 1: Revealing hidden carbamazepine conformations via 2D ¹H-¹⁵N HMBC NMR

Two-dimensional ¹H–¹⁵N HMBC NMR spectra of the well-known anticonvulsant carbamazepine, recorded in various organic solvents, reveal the presence of hidden conformers in saturated solutions. The observed distribution of these conformers is attributed to the presence of a solid phase within the saturated system. Additionally, a subtle influence of ring currents on different molecular conformations was detected, offering a straightforward method for identifying otherwise undetectable conformers. These hidden conformers were identified in three solvents: dimethyl sulfoxide, chloroform, and dichloromethane.

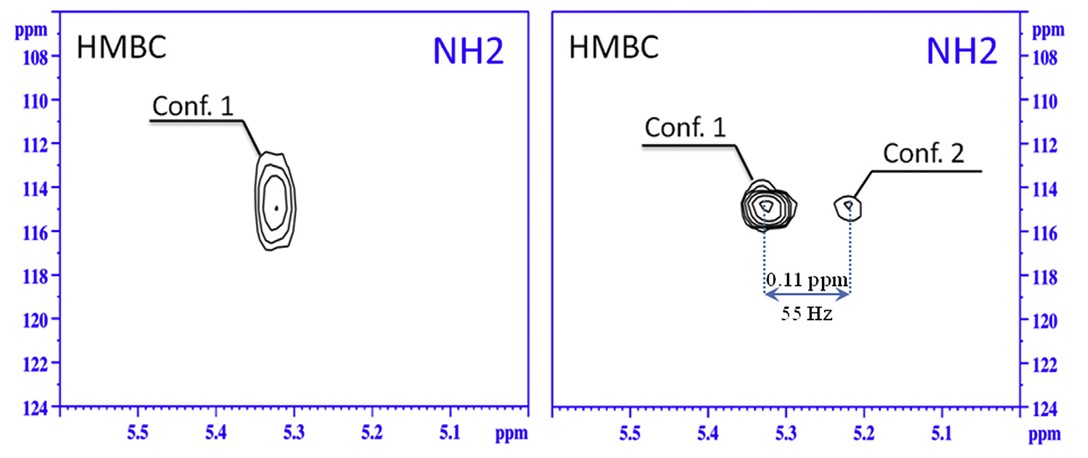

Figure 2. ¹H-¹⁵N HMBC spectra of carbamazepine in (left) a solution without solid phase and (right) a solution with solid phase in chloroform, obtained at the natural isotope abundance (300 K, 500 MHz, Bruker Avance III). (Khodov et al., 2021)

Case 2: Studying distribution of aluminum species in zeolite catalysts with ²⁷Al NMR

This study investigates the structure of aluminum species in H-ZSM-5 zeolite catalysts using high-field ²⁷Al NMR spectroscopy across magnetic field strengths from 7.05 to 35.2 T. The results show that, in dehydrated commercial H-ZSM-5 catalysts (Si/Al = 11.5–40), aluminum exists primarily as framework or partially coordinated framework species. Prior to hydrothermal exposure, non-framework Al species are undetectable. Advanced 2D NMR techniques (²⁷Al MQMAS, ¹H–²⁷Al and ²⁹Si–²⁷Al D-HMQC) confirm this finding and clearly distinguish non-framework species generated only after hydrothermal treatment. The study also highlights how hydration affects spectral interpretation, and emphasizes that accurate characterization—especially for high-Al content catalysts—requires data from multiple magnetic field strengths. These insights enable better prediction of catalyst behavior under operating conditions and help differentiate contributions from various hydroxyl groups.

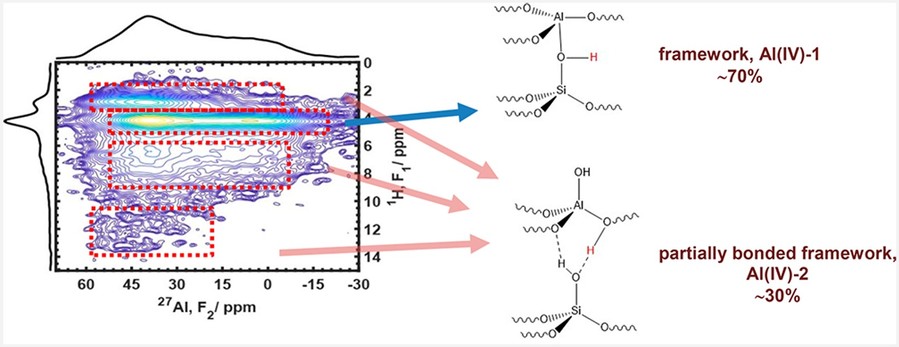

Studying the distribution of aluminum species in zeolite catalysts with 27Al NMR. Figure 3. Multi-field ²⁷Al NMR combined with 2D correlation techniques reveals aluminum speciation and in in zeolite catalysts. (Chen et al., 2021)

Case 3: ⁶Li{⁷Li} REDOR NMR for evaluating lithium ion conductivity

This study investigates lithium-ion dynamics in garnet-like solid-state electrolytes Li₆BaLa₂Nb₂O₁₂ (M = Ta, Nb) using ⁶Li{⁷Li} REDOR NMR. By analyzing temperature-dependent REDOR slopes, the researchers assess Li⁺ hopping rates across 247–350 K. The Nb-based phase exhibits higher ionic conductivity and a greater activation energy for ion hopping than the Ta-based analog. The findings demonstrate that REDOR NMR is an effective method for comparing Li⁺ ion dynamics in structurally similar solid-state electrolytes.

Using 6Li{7Li} REDOR NMR spectroscopy to compare the ionic conductivities of solid-state lithium-ion electrolytes. Figure 4. (a) ⁶Li{⁷Li}-REDOR curves of Li₆BaLa₂Nb₂O₁₂ over the temperature range of 247 K, where the sample is immobile, to 350 K. (b) Lines of best fit for each temperature have slopes P. (Spencer et al., 2014)

In summary, solid-state NMR spectroscopy is a cornerstone analytical technique for the study of crystalline materials. Its ability to provide atom-specific, local information—without requiring sample solubility or long-range order — makes it uniquely powerful. From identifying polymorphs in pharmaceuticals to probing defects in catalysts and structures in complex frameworks, solid-state NMR delivers where other methods falter. Its integration with modern computational techniques and hardware innovations continues to expand its reach and impact.

With a full-featured NMR platform, Creative Biostructure delivers customized solutions for your crystal material research. Contact us today to learn how our NMR expertise can support your next project!
