Image and Data Analysis

Creative Biostructure offers a wide variety of tools and technologies for image and data analysis. With our experience and expertise in advanced imaging techniques, we provide tailored image and data analysis services that can fit our clients’ specific requirements.

Our image and data analysis services include but not limited to:

Our SEM service provides high-quality images for visualization of surface details of samples, such as texture, morphology, or contamination of materials. We can also perform elemental mapping and distribution across the surface of the sample.

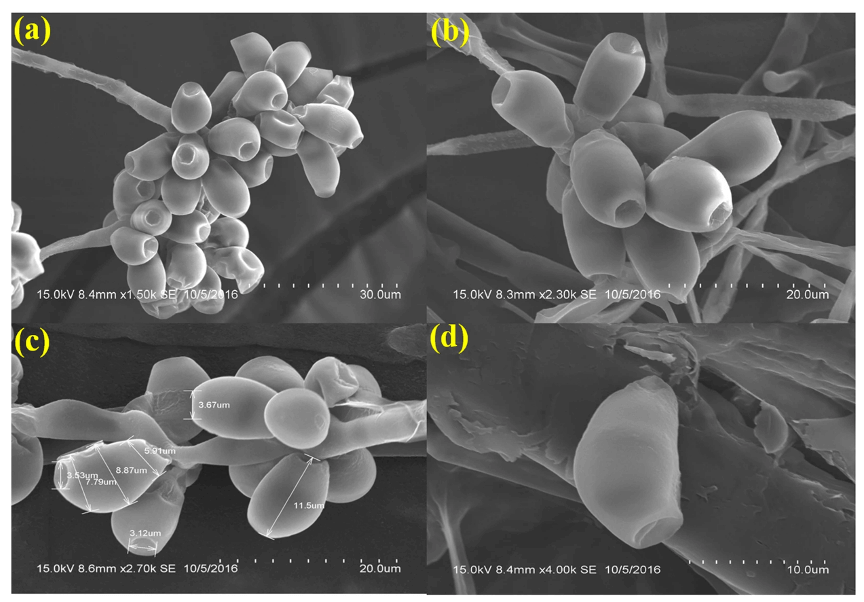

Image and Data AnalysisFigure 1. SEM analysis of Curvularia lunata spores processed by growing the fungus on Whatman No.1 filter paper strips overlaid with PDA medium with simple air drying (Native state). (Gopal Venkatesh Babu, 2018)

Our TEM service includes high-resolution imaging and data analysis of a wide variety of samples. Defects such as voids, stacking faults, dislocations and loops can be revealed and analyzed using weak beam dark imaging, trace analysis and other techniques.

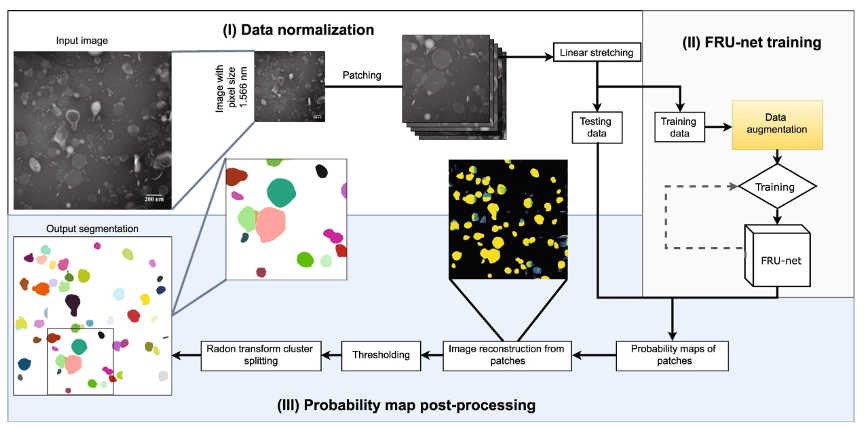

Image and Data AnalysisFigure 2. Diagram of the workflow dedicated to the detection and segmentation of small extracellular vesicles in transmission electron microscopy images. (Estibaliz Gómez-de-Mariscal, 2019)

We provide imaging and data analysis for detection and localization of proteins in cells and tissues via Immuno-EM technology, which can be applied on practically every unicellular and multicellular organism, and often providing insights into the structure-function associations.

Our super-resolution microscopy services allow imaging and data analysis of subcellular structures in living cells, as well as real-time activities at a 5-20 nm resolution.

Our 4D UEM service allows imaging and data analysis of materials at extremely short spatial and temporal resolutions by integrating the excellent spatial resolution of electron microscopes with the temporal resolution of ultrafast femtosecond laser-based spectroscopy.

With a wealth of knowledge and experience, Creative Biostructure offers a wide range of high-quality imaging and data analysis service as a part of our structural data processing and interpretation platform. Please feel free to contact us for a detailed quote.

References

  1. Zhu F Y, et al. 3D nanostructure reconstruction based on the SEM imaging principle, and applications. Nanotechnology. 2014, 25(18): 185705.
  2. Almeida T P, et al. Quantitative TEM imaging of the magnetostructural and phase transitions in FeRh thin film systems. Scientific Reports. 2017, 7(1): 1-11.
  3. Adhikari A, et al. Four-dimensional ultrafast electron microscopy: Insights into an emerging technique. ACS Applied Materials & Interfaces. 2017, 9(1): 3-16.
For research use only. Not intended for diagnostic, therapeutic or any clinical use.
